ConnectWise PSA Integration

SECURITY  Administrator

NAVIGATION  Legacy UI > Setup > ConnectWise

1. Log in to your Datto RMM account and click the ComStore tab.
2. Search for the ConnectWise v2 component.
3. Open the component and click Add to my Component Library to download it. This will add the ConnectWise tab to the Setup page within in Datto RMM.


1. In ConnectWise PSA, navigate to System > Security Roles.
2. Click the plus sign icon to create a new Security Role with the following permissions:


1. In ConnectWise PSA, navigate to System > Members.
2. Navigate to the API Members tab.
3. Click the plus sign icon to create a new member.
4. In the System > Role ID field, select the Security Role created in Configure a Security Role in ConnectWise PSA.
5. Enter the rest of the required details and then click the Save icon.
6. Navigate to the API Keys tab.
7. Select the member you wish to generate keys for and click the plus sign icon.
8. Enter a description for your API keys and click the Save icon.
9. Observe that a Public Key and a Private Key are generated, and make note of these keys. After initial creation, the Private Key will no longer be visible.


1. In Datto RMM, navigate to Setup > ConnectWise.
2. In the Connect to ConnectWise section, toggle the Enable field to ON to begin configuring the ConnectWise PSA integration.


NOTE  If you have any other currently enabled PSA configurations, you must disable them first before you can enable the ConnectWise PSA integration.

3. Enter the following details:


NOTE   All fields are required in order to complete the integration setup.

4. Click Save and Check Now.
5. Observe that a confirmation message will be displayed if the connection was successful.


In this section, you can link ConnectWise PSA companies to Datto RMM sites. This allows you to associate any ConnectWise PSA configurations automatically created from Datto RMM devices with the correct companies in ConnectWise PSA.

1. Click Load Companies. You can filter the companies listed by using the Mapping, Type, and Status drop-down menu.
   Us


NOTE  Selecting Mapped from the Mapping drop-down menu and clicking Load Companies will allow you to review existing mappings.

NOTE  If a ConnectWise PSA company is configured to have multiple company types, the company can appear when loading companies for any of the associated company types. Once an RMM site is mapped to the company, it will no longer appear in the list to map for additional company types.

NOTE  If a ConnectWise PSA company is configured to have multiple sites, the company will appear in the list multiple times for each company and site combination. Once a company and site combination is mapped to an RMM site, it will no longer appear in the list to map. The ConnectWise PSA company and site combination will also be reflected in any tickets generated. Refer to Round-trip ticketing.


2. Observe that once the ConnectWise PSA companies have loaded, an attempt is made to match them with similarly named Datto RMM sites. If the matching is incorrect, you can select the correct site using the drop-down menu in the RMM Site column. The Search field enables you to narrow the results further.

   If no match is found, the drop-down menu in the RMM Site column defaults to Create New with the name of the site to be created.

3. Select the check boxes for the companies you wish to map, and click Map Selected Companies to perform the mapping.


NOTE  Once a company is mapped to a site, you can click the hyperlink within the RMM Site column to view the device summary page within Datto RMM. Refer to Device summary.

Select one or more companies and then click Unmap Selected Companies.

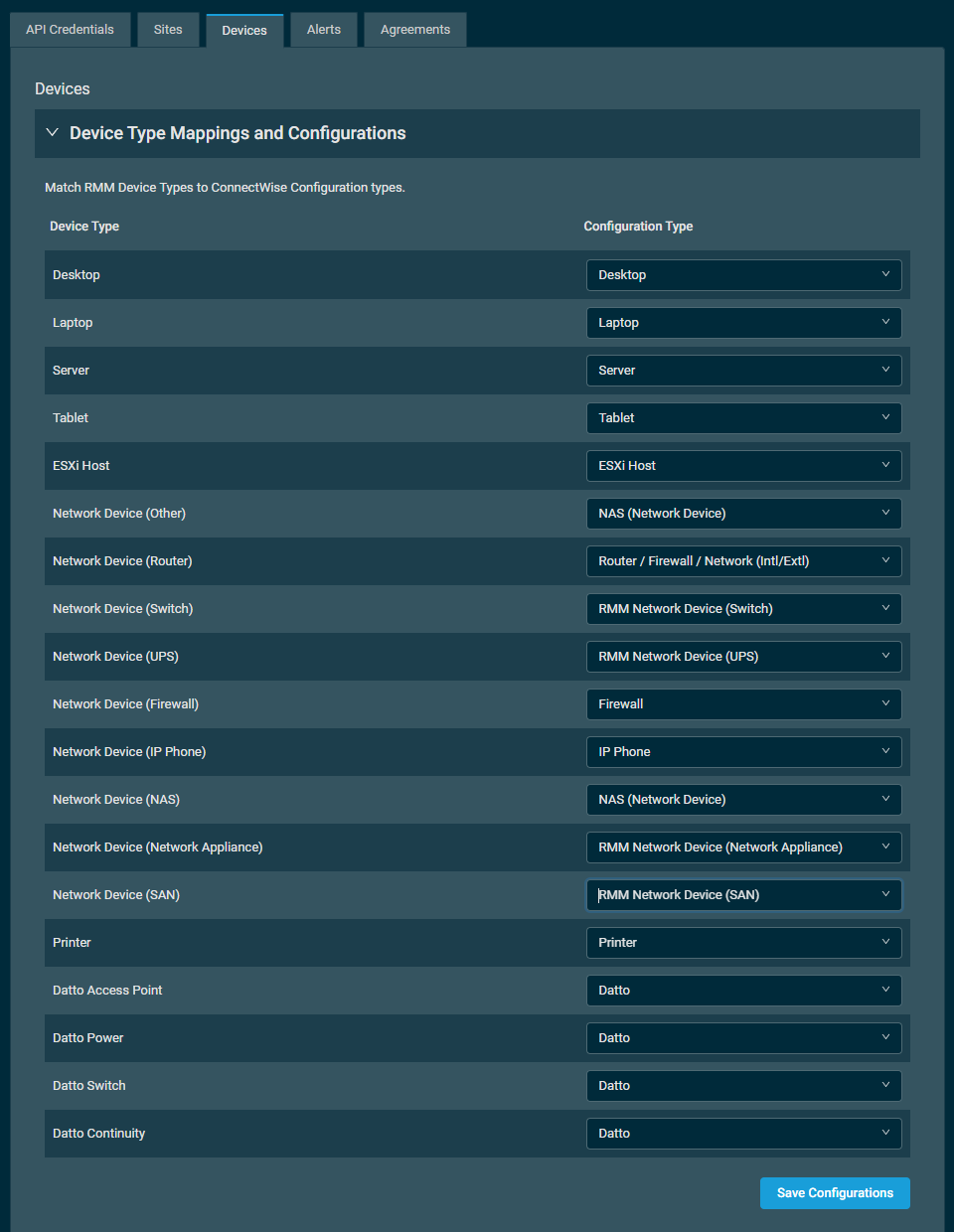

This section allows you to link Datto RMM device types and ConnectWise PSA configuration types. These mappings only apply to new ConnectWise PSA configurations; they will not affect existing configurations.

An attempt is made to match similarly named Datto RMM device types to ConnectWise PSA configuration types. Click Edit to modify incorrect mappings and use the drop-down menu to search for a better match. Click Save to save the mapping change or Cancel to discard your changes.

NOTE  If the device type is changed in Datto RMM, the Type field in the configuration is correspondingly updated. The update will respect the mapping of device types and configuration types in ConnectWise PSA.

NOTE  If none of the listed configuration types are appropriate, you will need to create a new configuration type within ConnectWise PSA.

NOTE  If multiple warnings are encountered that prevent devices from being created, they will appear as pop-ups in the UI. Click Remove all ConnectWise warnings to clear these warnings.

IMPORTANT  Datto RMM devices cannot be used to create new ConnectWise PSA configurations if the configuration type has any Questions selected as Required. A warning will display next to these fields in Datto RMM. Devices in Datto RMM can only be mapped to preexisting configurations in ConnectWise PSA (in which these questions have been already answered). To create new devices with these configuration types, questions must be cleared as Required in the Configuration Setup Table within the ConnectWise PSA interface. For more information, refer to Configuration Setup Table.

IMPORTANT  To complete this section, you must already have an Agreement with at least one Addition configured in ConnectWise PSA. You must also have the required Finance and Procurement permissions configured for your Security Role in ConnectWise PSA. Refer to Configure a Security Role in ConnectWise PSA.

This section allows you to map Datto RMM device types to ConnectWise PSA Agreement Types and Product IDs. Click Edit to select the appropriate values from the drop-down menus.

NOTE  Agreement Types and Product IDs that are Inactive in ConnectWise PSA will not be available for mapping in Datto RMM.

In Datto RMM, a device quantity represents the number of devices in a site. Once you have completed this section and have also mapped sites to companies in the Map ConnectWise PSA companies to Datto RMM sites section, any devices that are mapped or unmapped in the Map Datto RMM devices to ConnectWise PSA configurations section will count toward the device quantity for a mapped site.

Click Save to save your changes or Cancel to discard them. Once changes are saved, the relevant ConnectWise PSA Agreement will be determined based on the mapped Agreement Type, and the Addition associated with that Agreement will be updated based on the mapped Product ID. Within the Addition, the Total Quantity field represents the device quantity, which will be incremented or decremented automatically.

NOTE  The Total Quantity field in ConnectWise PSA is only incremented or decremented when triggered by certain operations. If Agreement Mapping is configured after a Datto RMM device has already been synced with a ConnectWise PSA configuration, the Total Quantity field will not be updated to reflect the current total. You must first manually adjust the Total Quantity field in the Addition to reflect the number of Managed devices in Datto RMM. Once adjusted, the Total Quantity field will then be automatically incremented or decremented when triggered by one of the following operations:
• Device is added (+1)
• Device is deleted (-1)
• Existing mapped device is moved to the current site (+1)
• Existing mapped device is moved from the current site to another site (-1)
• Device type is changed (+1/-1)
• Datto RMM site is deleted (-1)

Once the previous sections are configured, you can map Datto RMM devices to ConnectWise PSA configurations. You can choose to either enable automatic mapping or to manually configure the mappings. A table of all the Datto RMM devices you can map to configurations in ConnectWise PSA is displayed. If a device is already mapped, the mapping details are shown in the table. If a device is not mapped, the columns are blank. If a device is moved to another site within Datto RMM, the updated site is displayed in the table.

IMPORTANT  When you initially view this section, the Automatically Map setting is disabled by default. It is recommended that you familiarize yourself with the matching logic described in this section and verify the setup before enabling automatic mapping.

Automatic Mapping

Toggling the Automatically Map setting to ON will reveal the Map Now button. Enabling this setting will trigger the matching logic described in this section when one of the following events occurs:

• The Map Now button is clicked.
• A new Datto RMM site is mapped to a ConnectWise PSA company.
• A new Datto RMM device is created in a mapped Datto RMM site.

Mapping logic

Refer to the following flowchart that describes the mapping logic.

To summarize, it is considered a match as follows:

1. An existing Manage Device link is present in ConnectWise PSA. Refer to Manage Datto RMM devices.
2. A matching Serial Number is found in ConnectWise PSA. If more than one result is found, the following step is used to narrow the results.
3. A matching Configuration Name is found in ConnectWise PSA. If more than one result is found, the following step is used to narrow the results.
4. A matching Manufacturer is found in ConnectWise PSA. If more than one result is found, the following step is used to narrow the results.
5. A matching Model Number is found in ConnectWise PSA. If more than one result is found, the logic is considered to have failed to find a match.

If the matching logic fails, the option to create a new configuration is displayed with the name of the configuration to be created in brackets. The drop-down menu can also be used to manually select an appropriate ConnectWise PSA configuration. Multiple devices cannot map to the same configuration in ConnectWise PSA. Since a device can only be associated with one configuration, a new configuration will be created for each device being mapped.

NOTE  When a device is moved from one site to another in Datto RMM, the matching ConnectWise PSA configuration will be inactivated in the original ConnectWise company. In the destination ConnectWise company, either a new configuration item will be created or an existing, matching configuration will be made active if the Automatically Map setting is ON.

Manual Mapping

Click Load Devices to load the table with either mapped or unmapped Datto RMM devices (depending on what is selected in the Mapping drop-down menu). Devices can be mapped individually, or you can map several devices at once. Leaving the drop-down menu on Create New (default) will create a new configuration in ConnectWise PSA.

NOTE  Devices not currently mapped to configurations are shown by default. Select Mapped from the drop-down menu to view the devices that are already mapped.

NOTE  Devices will not be available to map until they have been audited by the Datto RMM platform.

When listing existing Datto RMM device mappings, note that the following logic is in place to determine mapped status:

1. If a Datto RMM device is in a different Datto RMM site than the linked ConnectWise PSA company, it is considered unmapped and should therefore be re-mapped before use.
2. If a Datto RMM device is in the same Datto RMM site as the linked ConnectWise PSA company, it will retain its mapping.

For unmapped Datto RMM devices, an attempt is made to suggest the most appropriate ConnectWise PSA configuration match for a Datto RMM device in the CW Name column (otherwise, you can create a new one if no match is found). In ConnectWise PSA, Datto RMM devices exist within configurations for the specified company. From there, you can see the configuration details for the device, including its Type, Status, Manufacturer, Model Number, Serial Number, and Warranty Date.

NOTE  The Warranty Date field is synchronized to the Expiration Date field in ConnectWise PSA only if the Expiration Date field is empty. If the Warranty Date is edited in Datto RMM after the mapping is done, the Expiration Date field is not updated again in ConnectWise PSA. For information about the Warranty Date field in Datto RMM, refer to Edit device details in the legacy UI and Device summary in the New UI.

Once all selections have been verified, click the check boxes for the mappings you wish to perform and then click Map Selected Devices.

Unmapping a device in Datto RMM will unmap the device from its configuration in ConnectWise PSA.

To unmap a device, perform the following steps:

1. Click the Unmap Selected Devices button for the device(s) you wish to unmap.

2. Observe that the fields in the mapping table are now blank.

3. Observe that the status of the device in its configuration within ConnectWise PSA remains Active.


NOTE  A device will be automatically unmapped if it is deleted from Datto RMM, and its status will be set to Inactive within the configuration in ConnectWise PSA.

NOTE  If a device is deleted from a configuration in ConnectWise PSA, it will remain mapped in Datto RMM until you unmap it.

This section allows you to enable the creation of ConnectWise PSA tickets, as well as to configure the ticket source and to map Datto RMM alert priorities to ConnectWise PSA ticket priorities.

NOTE  For successful ticket creation, Service Boards must have a default team and status configured within ConnectWise PSA.

1. Toggle the Enable field to ON to allow creation of ConnectWise PSA tickets.
2. In the Source drop-down menu, select a ticket source. If this is changed later, any tickets created after the change will use the updated source.
3. Select the appropriate ConnectWise PSA ticket priorities from the drop-down lists on the right to match the Datto RMM alert priorities on the left.

4. In the Ticket Attributes section, select the Service Board, Type, Subtype, Open Status, and Closed Status in the drop-down menus for each origin.


5. Click Save.


NOTE   All Ticket Attributes can be overridden at the individual monitor level. You may specify whether new tickets will be created in ConnectWise PSA when adding or updating a monitoring alert for a device.

IMPORTANT  You are not required to complete this section in order to map devices; however, a new ticket cannot be manually created for a device until it is mapped in ConnectWise PSA.

NOTE  For information about Agent ticketing for end users, refer to Integrated ticketing with ConnectWise PSA.

Configure repeating alert

Within the Repeating Alert section, you can configure whether to consider a Datto RMM alert to be repeating if any Connectwise PSA tickets have been created for the same monitor and the same device within a configured timeframe (minutes/hours). Repeating alerts are only added to existing ConnectWise PSA tickets that are not resolved or closed.

To configure a repeating alert, toggle the Enable field to ON. Enter a number for the timeframe, and then select either minutes or hours from the drop-down menu.

Where repeating alerts are configured, when a ticket is resolved in ConnectWise PSA that contains multiple repeat alerts, all alerts associated with the resolved ticket will also be closed in Datto RMM.

You can disable ticket synchronization temporarily by toggling Enable to OFF within the Map RMM Alerts to ConnectWise Tickets section under Setup > ConnectWise. All of the ticket integration settings will be retained until the next time it is enabled. Tickets will begin generating from the moment ticket synchronization is re-enabled.

Once the settings are saved, the systems will synchronize. Tickets and device information generated by Datto RMM will now automatically be synchronized to ConnectWise PSA. When a ticket's details are updated in ConnectWise PSA, the change is automatically synchronized back to Datto RMM.

You can disable the integration temporarily by toggling Enable to OFF within the Connect to ConnectWise section under Setup > ConnectWise. All of the integration settings will be retained until the next time the integration is enabled.

Should you decide to disable the integration altogether, remove all settings and links between Datto RMM and ConnectWise PSA, and unmap any mapped devices from their ConnectWise PSA configurations, you will need to remove the ConnectWise component from your downloaded components. For more information on how to remove a component, refer to Manage your components in the legacy UI and Component Library in the New UI.

Round-trip ticketing works automatically. When tickets are closed in ConnectWise PSA, the corresponding alert will be resolved in Datto RMM. When an alert is resolved in Datto RMM, the corresponding ticket will be closed in ConnectWise PSA.

NOTE  Configuring which ticket statuses will cause tickets to be in a closed state in ConnectWise PSA (which triggers Datto RMM alerts to be resolved) is done within ConnectWise PSA.

Tickets are generated by Datto RMM in one of two ways:

• Manually by selecting New Ticket from the Monitor Alerts page (legacy UI) or the Single Alert View page (New UI). Refer to Action bar icons in the legacy UI and Create Ticket in the New UI.
• Automatically by an alert generated based on a monitor configured for the device. Refer to Integrated ticketing with ConnectWise PSA in the legacy UI or ConnectWise PSA in the New UI. The ticket is then created and associated with the device's configuration within ConnectWise PSA.

You can open the ticket by clicking the ticket number anywhere in the New UI:

Alternatively, you can click the ticket number anywhere in the legacy UI:

The ticket then opens in ConnectWise PSA.

Diagnostic information about the device is only added to the ticket if diagnostic details are available in the alert. Refer to View and act on alert information in the legacy UI or Timeline in the New UI.

NOTE  The RMM Device and RMM Alert fields are automatically generated by Datto RMM. Click the icon next to these fields to go directly to the device or alert page respectively in Datto RMM.

To manage a device via ConnectWise PSA, on the Configuration page for the device, click the Manage Device link to open the device summary page in Datto RMM. Refer to Device summary.

NOTE  You must be logged into your Datto RMM account; otherwise you will be prompted to log in first.
